Mastering Spring Reactive Programming

From the Reactive Manifesto to Project Reactor, Spring WebFlux, and production-ready patterns — all with Kotlin code examples.

Introducing Reactive Programming

Reactive programming builds systems that react to data as it flows rather than waiting for results. Instead of blocking threads, reactive programs describe transformation pipelines that execute when data becomes available.

IN A NUTSHELL

Declarative programming with an emphasis on asynchronous data streams and change propagation — data types express values that change over time, and downstream computations update automatically.

The core abstraction is the Observable/Subscriber pattern. An Observable is a data source where observers register interest. Subscribers receive updates whenever the subject changes — the source keeps track of its observers and pushes notifications automatically.

kotlin

// The Observable/Subscriber pattern — foundation of reactive programming

// Observable: a data source that emits values over time
// Subscribers register interest and receive updates automatically

val priceStream: Flux<Double> = stockService.watchPrice("AAPL")

// Subscriber 1: Dashboard UI
priceStream.subscribe { price ->
    println("Dashboard updated: $$price")
}

// Subscriber 2: Alert system
priceStream
    .filter { it > 200.0 }
    .subscribe { price ->
        alertService.notify("AAPL crossed $$200: $$price")
    }

// Both subscribers react to the SAME stream independently
// The Observable keeps track of its observers and pushes updates

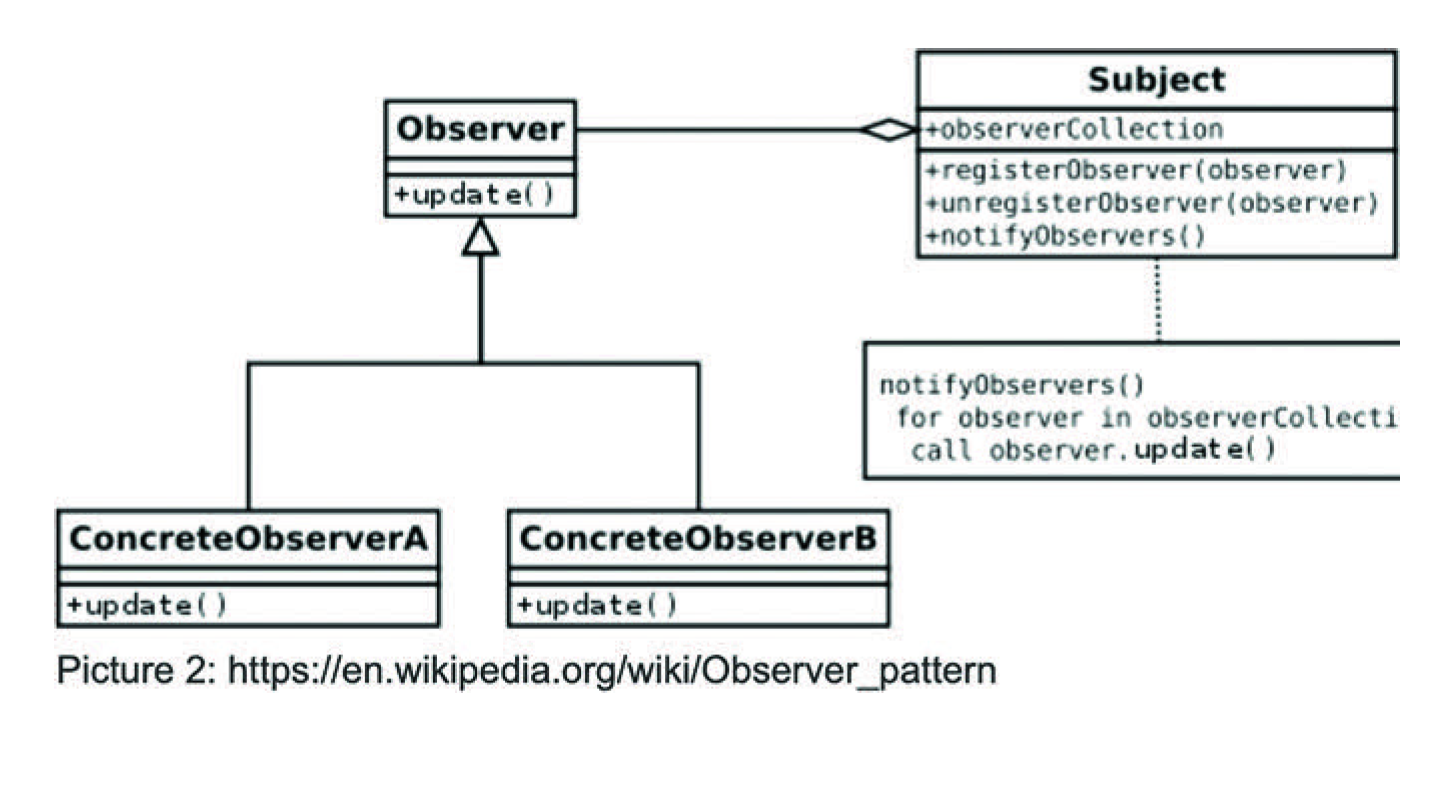

Observer Pattern — Subject registers observers and notifies them on changes

Observer Pattern — Source: Wikipedia

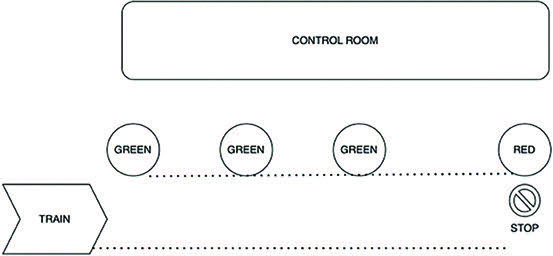

Train/Signal analogy — Control Room as Observable, Train as Subscriber

Train/Signal analogy — Control Room (Observable) sends signals; Train (Subscriber) reacts

The Three Principles

1. ASYNCHRONOUS

A database call returns immediately rather than blocking the calling thread. The system handles more work with fewer resources.

2. STREAMS

Data flows through a pipeline of transformations. Every value sequence is an observable that operators can filter, map, and combine.

3. PROPAGATION OF CHANGE

When a value changes upstream, all dependent downstream computations re-evaluate automatically — the "spreadsheet model" applied to async streams.

kotlin

// The three principles in action

// 1. ASYNCHRONOUS — non-blocking, immediate return
fun fetchUserData(id: String): Mono<UserData> {
    // Returns immediately — does NOT block the thread
    return userRepository.findById(id)  // async DB call
}

// 2. STREAMS — data flows through a pipeline of transformations
fun processOrders(): Flux<OrderSummary> {
    return orderRepository.findAll()         // source stream
        .filter { it.status == "ACTIVE" }     // filter stage
        .map { it.toSummary() }               // transform stage
        .sort(compareByDescending { it.total }) // sort stage
}

// 3. PROPAGATION OF CHANGE — downstream reacts to upstream changes
fun liveDashboard(): Flux<DashboardState> {
    return Flux.combineLatest(
        userService.activeUserCount(),    // changes propagate
        orderService.revenueStream(),     // changes propagate
        metricService.healthCheck()       // changes propagate
    ) { users, revenue, health ->
        DashboardState(users, revenue, health)  // auto-updated!
    }
}

Imperative vs Reactive: From "pull" (blocking) to "push" (non-blocking, event-driven):

What to notice

Each findById() call blocks the thread until the DB responds
Total time = sum of all latencies (e.g. 200ms + 300ms = 500ms)
Thread is wasted waiting — cannot serve other requests

kotlin

// Imperative (blocking) approach
fun getUser(id: String): User {
    val user = userRepository.findById(id)   // blocks thread
    val orders = orderRepository.findByUserId(id)  // blocks again
    return user.copy(orders = orders)
    // Thread is IDLE during both calls
    // Total time = sum of both latencies
}

What to notice

Returns Mono immediately — thread is free to handle other work
zipWith() fires both queries in parallel
Total time = slowest query (e.g. max(200ms, 300ms) = 300ms)

kotlin

// Reactive (non-blocking) approach
fun getUser(id: String): Mono<User> {
    return userRepository.findById(id)        // non-blocking
        .zipWith(orderRepository.findByUserId(id).collectList())
        .map { (user, orders) -> user.copy(orders = orders) }
    // Thread is FREE to handle other requests
    // Both queries execute in parallel with zipWith
}

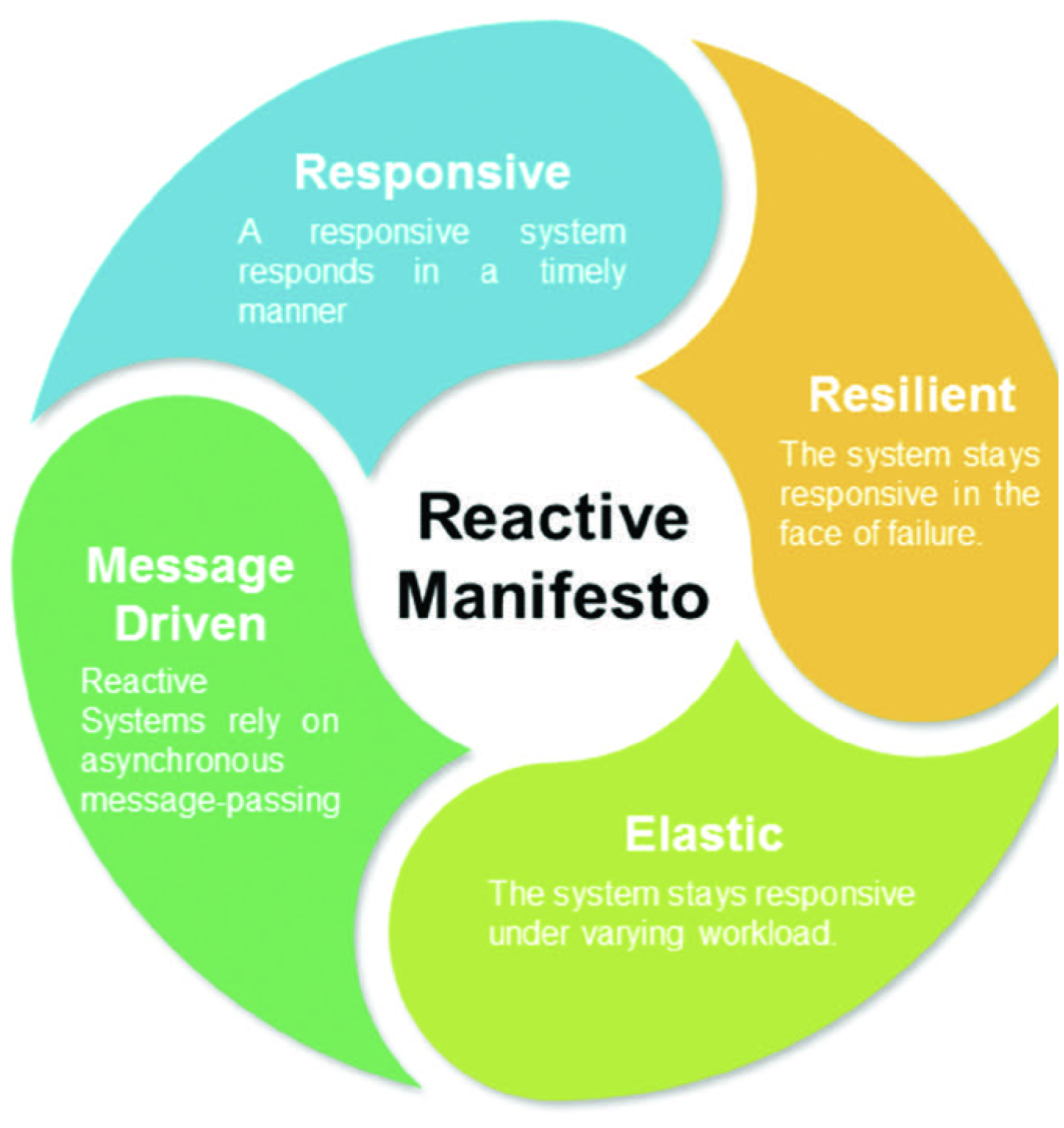

The Reactive Manifesto

Four architectural pillars that Spring WebFlux and Project Reactor are built upon:

RESPONSIVE

Reliable upper bounds for response times. Consistent quality of service under all conditions.

RESILIENT

Built for failures — replication, containment, isolation. Each component fails independently without cascading.

ELASTIC

Scale up and down in response to load changes. No contention points or central bottlenecks.

MESSAGE DRIVEN

Asynchronous message passing for loose coupling and location transparency. Recipients consume resources only while active.

Reactive Streams Specification

A specification (part of java.util.concurrent.Flow in Java 9+) defining the contract for async stream processing with non-blocking backpressure. Four core interfaces:

kotlin

// The four core interfaces of Reactive Streams specification

interface Publisher<T> {
    fun subscribe(subscriber: Subscriber<in T>)
}

interface Subscriber<T> {
    fun onSubscribe(subscription: Subscription)
    fun onNext(item: T)
    fun onError(throwable: Throwable)
    fun onComplete()
}

interface Subscription {
    fun request(n: Long)   // backpressure: request N items
    fun cancel()
}

interface Processor<T, R> : Subscriber<T>, Publisher<R>

KEY INSIGHT

Publisher produces → Subscriber consumes → Subscription enables backpressure via request(n) → Processor is both.

Spring Framework Foundations

The foundations that reactive Spring builds upon: IoC and Dependency Injection.

IoC & Dependency Injection

IoC transfers control from developers to a container. DI wires objects together — decoupling implementation from execution and simplifying testing.

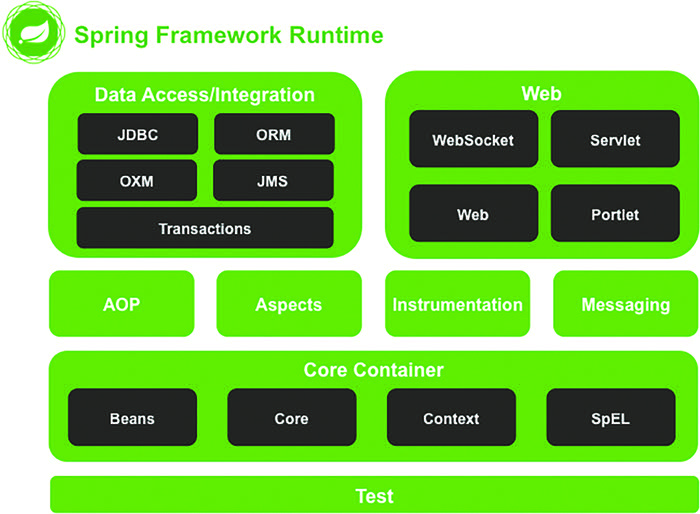

Spring Framework Runtime — Module architecture: Data Access, Web, AOP, Core Container, Test

Spring Framework Runtime — Data Access/Integration, Web, AOP, Core Container, Test

kotlin

// Inversion of Control (IoC) & Dependency Injection (DI)
// Spring manages object creation and wiring — you declare, Spring delivers

@Configuration
class AppConfig {
    @Bean
    fun userRepository(): UserRepository = InMemoryUserRepository()

    @Bean
    fun userService(repo: UserRepository): UserService = UserService(repo)
}

// Constructor injection (preferred) — Spring resolves dependencies automatically
@Service
class OrderService(
    private val userRepo: UserRepository,
    private val productRepo: ProductRepository,
    private val notificationService: NotificationService
) {
    fun placeOrder(userId: String, productId: String): Mono<Order> {
        return userRepo.findById(userId)
            .zipWith(productRepo.findById(productId))
            .flatMap { (user, product) ->
                val order = Order(user = user, product = product)
                notificationService.notify(user, order)
                    .thenReturn(order)
            }
    }
}

Spring Framework 6 Key Changes

Spring Framework 6 introduced significant changes that affect how we build reactive applications:

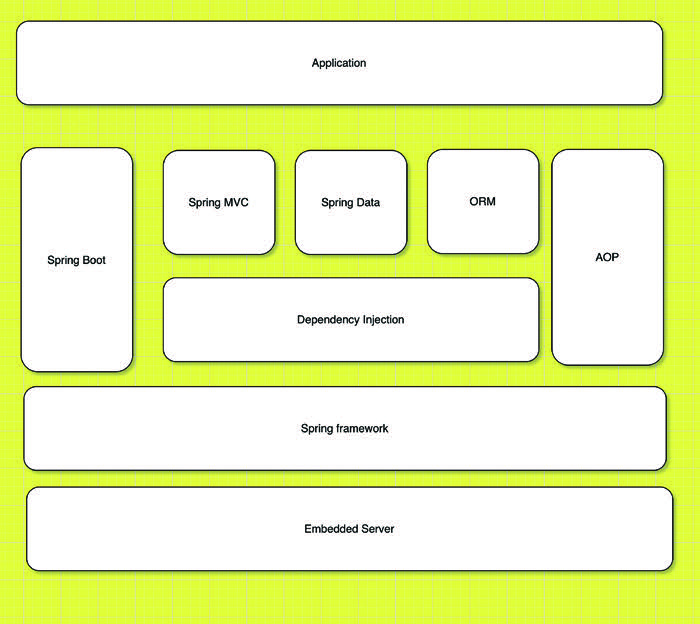

Spring Boot component architecture — Application, Spring MVC, Data, ORM, DI, Embedded Server

Spring Boot architecture — Application layer built on Spring MVC, Data, ORM with Dependency Injection

kotlin

// Spring Framework 6 — Key Changes

// 1. Baseline Java 17 (minimum JDK version)
// 2. Jakarta EE namespace migration: javax.* → jakarta.*
import jakarta.servlet.http.HttpServletRequest   // was javax.servlet
import jakarta.persistence.Entity               // was javax.persistence

// 3. AOT (Ahead-Of-Time) Processing — faster startup
// Build-time pre-processing of bean definitions
// Enabled via: ./gradlew nativeCompile

// 4. GraalVM Native Executables
// plugins { id("org.graalvm.buildtools.native") }
// Produces standalone binary: ~50ms startup vs ~2s JVM

// 5. HttpMethod changed from Enum to Class
val method = HttpMethod.valueOf("PATCH")

// 6. Servers: Tomcat 10, Jetty 11, Netty (default for WebFlux)

// 7. @Controller required (type-level @RequestMapping alone not enough)
@Controller            // NOW required
@RequestMapping("/api")
class ApiController { }

RxJava & Project Reactor

RxJava popularized reactive on the JVM. Project Reactor is the 4th-gen library based on Reactive Streams — Spring's native choice.

kotlin

// RxJava — the foundation that inspired Project Reactor
import io.reactivex.rxjava3.core.Observable

// Observable.just() — emit a single item
val signal: Observable<String> = Observable.just("Red Signal!")
signal.subscribe { println(it) }  // Red Signal!

// Observable.fromIterable() — emit items one by one
val colors = Observable.fromIterable(listOf("Red", "Green", "Blue"))
colors.subscribe(
    { item -> println("onNext: $item") },
    { error -> println("onError: $error") },
    { println("onComplete!") }
)
// onNext: Red
// onNext: Green
// onNext: Blue
// onComplete!

// Reactor (Project Reactor) is the 4th-gen reactive library
// used by Spring WebFlux. It implements Reactive Streams spec.
// Two core types: Mono<T> (0..1) and Flux<T> (0..N)

COMPARISON

RxJava 3: Observable, Single, Maybe, Flowable. Only Flowable implements Reactive Streams.
Reactor: Flux (0..N), Mono (0..1). Full Reactive Streams compliance. Spring-native.

Mono & Flux: The Building Blocks

Two core types that implement the Publisher interface in Project Reactor:

Mono<T> — 0 or 1 Element

A reactive Optional — emits at most one item. Perfect for single-value operations like findById.

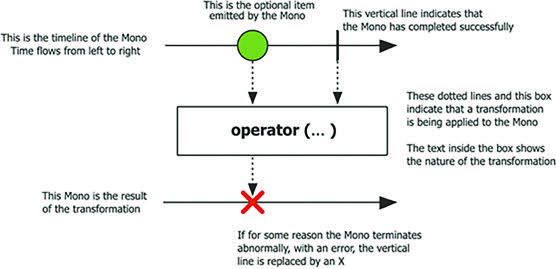

Mono marble diagram — Single item emission, operator transformation, success or error signal

Mono marble diagram — Single item emission through operator, success (|) or error (X)

kotlin

import reactor.core.publisher.Mono

// Mono<T> = 0 or 1 element (like Optional but async)

// Create a Mono with a value
val greeting: Mono<String> = Mono.just("Hello Reactive World")

// Create an empty Mono
val empty: Mono<String> = Mono.empty()

// Create from nullable (safe)
val safe: Mono<String> = Mono.justOrEmpty(null as String?)

// Create from a Callable (deferred execution)
val deferred: Mono<String> = Mono.fromCallable {
    expensiveComputation()
}

// Subscribe to consume the value
greeting.subscribe { value -> println(value) }
// Output: Hello Reactive World

Flux<T> — 0 to N Elements

A stream of 0 to N elements. Use for collections, event streams, or multiple values over time.

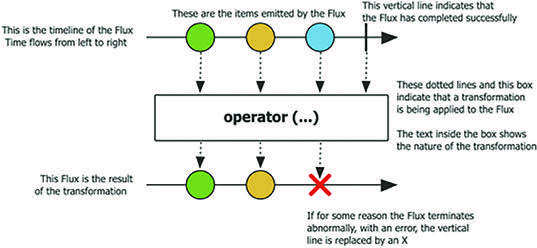

Flux marble diagram — Multiple items emitted through operator transformations

kotlin

import reactor.core.publisher.Flux

// Flux<T> = 0 to N elements (like a reactive List/Stream)

// Create from values
val numbers: Flux<Int> = Flux.just(1, 2, 3, 4, 5)

// Create from a collection
val fromList: Flux<String> = Flux.fromIterable(listOf("Spring", "Reactor", "WebFlux"))

// Create a range
val range: Flux<Int> = Flux.range(1, 10)

// Create an infinite stream (emits every 500ms)
val interval: Flux<Long> = Flux.interval(Duration.ofMillis(500))

// Operators: filter, map, take
numbers
    .filter { it % 2 == 0 }
    .map { it * 10 }
    .subscribe { println(it) }
// Output: 20, 40

Hot vs Cold Publishers

Cold: generates data anew per subscription. Hot: emits regardless of subscribers — late joiners miss earlier events.

kotlin

import reactor.core.publisher.Flux
import java.time.Duration

// ─── COLD Publisher ───
// Generates data anew for EACH subscriber
// Nothing happens until subscribe()
val coldFlux = Flux.just("A", "B", "C")

coldFlux.subscribe { println("Subscriber 1: $it") }  // A, B, C
coldFlux.subscribe { println("Subscriber 2: $it") }  // A, B, C (fresh)

// ─── HOT Publisher ───
// Emits regardless of subscribers
// Late subscribers miss earlier events
val hotFlux = Flux.interval(Duration.ofSeconds(1))
    .share()  // convert cold → hot (share among subscribers)

hotFlux.subscribe { println("Sub 1: $it") }  // 0, 1, 2, 3...
Thread.sleep(3000)
hotFlux.subscribe { println("Sub 2: $it") }  // 3, 4, 5... (missed 0,1,2)

// ConnectableFlux — hot publisher with manual connect
val connectable = Flux.range(1, 5).publish()
connectable.subscribe { println("Sub A: $it") }
connectable.subscribe { println("Sub B: $it") }
connectable.connect()  // NOW both subscribers start receiving

WHEN TO USE WHICH

Cold: Database queries, HTTP requests, file reads — each subscriber gets its own fresh data. Hot: WebSocket streams, Kafka topics, sensor data, stock tickers — data flows regardless of who is listening. Use .share() or .publish().autoConnect() to convert cold to hot.

Lazy vs Eager Loading

Mono.just() evaluates eagerly. Mono.defer() and fromCallable() evaluate lazily — only when subscribed.

kotlin

import reactor.core.publisher.Mono

// ─── EAGER Loading (Mono.just) ───
// The value is computed IMMEDIATELY, even before subscribe
fun eagerExample() {
    val eagerMono = Mono.just(expensiveQuery())  // query runs NOW!
    // Even if we never subscribe, the query already executed
}

// ─── LAZY Loading (Mono.defer) ───
// The value is computed ONLY when someone subscribes
fun lazyExample() {
    val lazyMono = Mono.defer {
        println("Query triggered!")
        Mono.just(expensiveQuery())  // runs only on subscribe()
    }

    // Nothing happens yet...
    lazyMono.subscribe { println("Got: $it") }  // NOW the query runs
}

// ─── Mono.fromCallable (also lazy) ───
val callable = Mono.fromCallable { computeValue() }
// Equivalent to defer but for simple Callable functions

RULE OF THUMB

Use Mono.just() for values already available. Use Mono.defer() or Mono.fromCallable() for values that require computation, I/O, or side effects — you want those to execute only when the pipeline is actually subscribed.

Backpressure

The mechanism by which a consumer signals to the producer how much data it can handle. Without it, fast producers overwhelm slow consumers.

kotlin

import reactor.core.publisher.Flux
import org.reactivestreams.Subscription

// Backpressure: the consumer controls the flow rate

Flux.range(1, 1000)
    .doOnNext { println("Produced: $it") }
    .subscribe(object : BaseSubscriber<Int>() {
        override fun hookOnSubscribe(subscription: Subscription) {
            // Request only 5 items at a time
            request(5)
        }

        override fun hookOnNext(value: Int) {
            println("Consumed: $value")
            if (value % 5 == 0) {
                request(5)  // Request next batch of 5
            }
        }
    })

// Backpressure strategies:
// .onBackpressureBuffer()  — buffer excess items
// .onBackpressureDrop()   — drop items consumer can't keep up with
// .onBackpressureLatest() — keep only the latest item

WHY IT MATTERS

In production, backpressure prevents your application from crashing when a database query returns millions of rows, when an external API sends data faster than you can process it, or when thousands of WebSocket clients flood your server with messages.

OVERFLOW STRATEGIES

onBackpressureBuffer() — Buffer in memory · onBackpressureDrop() — Drop excess · onBackpressureLatest() — Keep only latest · onBackpressureError() — Signal error. Always set a max buffer size in production.

Reactive Operators

The vocabulary of reactive programming — transform, filter, combine, and control data streams declaratively.

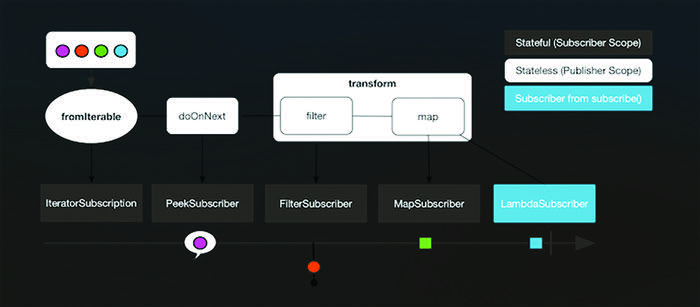

Reactor operator pipeline — fromIterable through doOnNext, transform (filter, map) to subscriber chain

Reactor operator pipeline — fromIterable → doOnNext → transform (filter, map) → subscriber chain

kotlin

import reactor.core.publisher.Flux
import reactor.core.publisher.Mono

// ─── Transformation Operators ───

// map: synchronous 1-to-1 transformation
Flux.just("spring", "reactor", "webflux")
    .map { it.uppercase() }
    .subscribe { println(it) }
// SPRING, REACTOR, WEBFLUX

// flatMap: async transformation (returns Publisher)
fun findUserByName(name: String): Mono<User> = userRepo.findByName(name)

Flux.just("Alice", "Bob")
    .flatMap { name -> findUserByName(name) }
    .subscribe { println(it) }

// ─── Filtering Operators ───

Flux.range(1, 20)
    .filter { it % 3 == 0 }     // 3, 6, 9, 12, 15, 18
    .take(3)                      // 3, 6, 9
    .subscribe { println(it) }

// ─── Combining Operators ───

// zip: combine element-by-element
val names = Flux.just("Alice", "Bob")
val ages = Flux.just(30, 25)
Flux.zip(names, ages) { name, age -> "$name is $age" }
    .subscribe { println(it) }
// Alice is 30, Bob is 25

// merge: interleave multiple sources (no ordering guarantee)
Flux.merge(fastSource, slowSource)
    .subscribe { println(it) }

Advanced Operators

Production operators: reusable transformations, batching, caching, grouping, and recursive expansion.

transform, buffer, cache, groupBy

kotlin

import reactor.core.publisher.Flux
import java.time.Duration

// ─── transform: reusable operator chains ───
val filterAndUppercase: (Flux<String>) -> Flux<String> = { flux ->
    flux.filter { it != "spam" }.map { it.uppercase() }
}
Flux.just("hello", "spam", "world")
    .transform(filterAndUppercase)
    .subscribe { println(it) }  // HELLO, WORLD

// ─── buffer: collect into batches ───
Flux.range(1, 10)
    .buffer(3)
    .subscribe { println(it) }  // [1,2,3], [4,5,6], [7,8,9], [10]

// ─── cache: replay for late subscribers ───
val cached = Flux.just(1, 2, 3)
    .doOnNext { println("Producing: $it") }
    .cache()  // only produces once, replays for all subscribers

cached.subscribe { println("Sub1: $it") }
cached.subscribe { println("Sub2: $it") }  // replayed from cache

// ─── groupBy: partition by key ───
Flux.range(1, 10)
    .groupBy { if (it % 2 == 0) "Even" else "Odd" }
    .flatMap { group ->
        group.collectList().map { "${group.key()}: $it" }
    }
    .subscribe { println(it) }
// Even: [2, 4, 6, 8, 10]
// Odd: [1, 3, 5, 7, 9]

concat, combineLatest, expand, limitRate

kotlin

import reactor.core.publisher.Flux
import reactor.core.publisher.Mono
import java.time.Duration

// ─── concat: sequential (preserves order) ───
val first = Flux.just(1, 2, 3).delayElements(Duration.ofMillis(100))
val second = Flux.just(4, 5, 6)
Flux.concat(first, second)
    .subscribe { print("$it ") }  // 1 2 3 4 5 6 (always in order)

// ─── combineLatest: react to ANY source change ───
val temp = Flux.interval(Duration.ofSeconds(2)).map { "${20 + it}°C" }
val humidity = Flux.interval(Duration.ofSeconds(3)).map { "${60 + it}%" }
Flux.combineLatest(temp, humidity) { t, h -> "Temp=$t Humidity=$h" }
    .subscribe { println(it) }

// ─── expand: recursive (tree/graph traversal) ───
data class TreeNode(val id: Int, val children: List<Int>)

fun fetchChildren(id: Int): Flux<TreeNode> = repository.findChildren(id)

Mono.just(TreeNode(1, listOf(2, 3)))
    .expand { node -> fetchChildren(node.id) }
    .subscribe { println("Visited: ${it.id}") }

// ─── delayElements + limitRate: throttle processing ───
Flux.range(1, 100)
    .delayElements(Duration.ofMillis(50))
    .limitRate(10)  // request 10 at a time (backpressure)
    .subscribe { println(it) }

// ─── flatMapIterable: flatten collections ───
Flux.just(listOf(1, 2), listOf(3, 4), listOf(5))
    .flatMapIterable { it }  // flattens to: 1, 2, 3, 4, 5
    .subscribe { print("$it ") }

Error Handling

Errors are first-class signals that propagate downstream and terminate the stream unless handled with recovery operators.

kotlin

import reactor.core.publisher.Flux
import reactor.core.publisher.Mono
import reactor.util.retry.Retry
import java.time.Duration

// ─── Error Recovery Operators ───

// onErrorReturn: provide a fallback value
Mono.error<String>(RuntimeException("DB down"))
    .onErrorReturn("Default Value")
    .subscribe { println(it) }  // Default Value

// onErrorResume: switch to a fallback Publisher
fun fetchFromPrimary(): Mono<Data> = primaryDb.find()
fun fetchFromCache(): Mono<Data> = cache.find()

fetchFromPrimary()
    .onErrorResume { ex ->
        println("Primary failed: ${ex.message}")
        fetchFromCache()  // fallback to cache
    }
    .subscribe { println(it) }

// ─── Retry with Backoff ───

externalApi.call()
    .retryWhen(
        Retry.backoff(3, Duration.ofSeconds(1))
            .maxBackoff(Duration.ofSeconds(10))
            .filter { it is ServiceUnavailableException }
    )
    .onErrorReturn("Service temporarily unavailable")
    .subscribe { println(it) }

Async Programming Patterns

Parallel processing, schedulers, and event-driven patterns with Reactor Sinks.

kotlin

import reactor.core.publisher.Flux
import reactor.core.scheduler.Schedulers

// ─── Parallel processing with ParallelFlux ───
Flux.range(1, 100)
    .parallel(4)                       // split into 4 rails
    .runOn(Schedulers.parallel())       // run on parallel scheduler
    .map { processItem(it) }            // each rail processes independently
    .sequential()                       // merge back to single Flux
    .subscribe { println(it) }

// ─── Schedulers explained ───
// Schedulers.parallel()       — CPU-bound work (cores count threads)
// Schedulers.boundedElastic() — I/O-bound / blocking work (capped pool)
// Schedulers.single()         — single-threaded (sequential tasks)
// Schedulers.immediate()      — current thread (no scheduling)

// ─── Real-time event generation ───
fun generateEvents(): Flux<String> =
    Flux.interval(Duration.ofSeconds(1))
        .map { index -> "Event $index" }
        .take(10)  // emit 10 events then complete

// ─── Event-driven with Sinks ───
val sink = Sinks.many().multicast().onBackpressureBuffer<String>()

// Publish events programmatically
sink.tryEmitNext("user.created")
sink.tryEmitNext("order.placed")

// Multiple subscribers receive events
sink.asFlux().subscribe { println("Listener 1: $it") }
sink.asFlux().subscribe { println("Listener 2: $it") }

SCHEDULERS

parallel() — CPU-bound (cores count) · boundedElastic() — I/O-bound (wrapping blocking calls) · single() — sequential tasks · immediate() — current thread.

Spring WebFlux

The reactive web framework — runs on a non-blocking event loop (Netty) with two programming models: annotated controllers and functional routing.

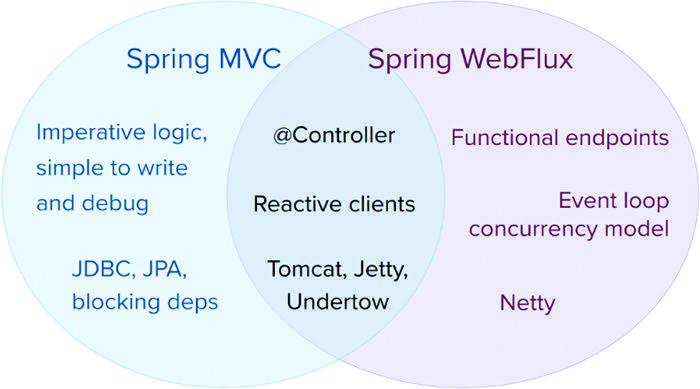

MVC VS WEBFLUX

Shared: @Controller, reactive clients · MVC: JDBC/JPA, thread-per-request · WebFlux: RouterFunction, Netty, Mono/Flux, backpressure.

Annotated Controllers

Same as Spring MVC but with Mono/Flux return types. The framework handles subscription and backpressure.

kotlin

import org.springframework.web.bind.annotation.*
import reactor.core.publisher.Flux
import reactor.core.publisher.Mono

@RestController
@RequestMapping("/api/products")
class ProductController(private val service: ProductService) {

    @GetMapping
    fun getAllProducts(): Flux<Product> =
        service.findAll()

    @GetMapping("/{id}")
    fun getProduct(@PathVariable id: String): Mono<Product> =
        service.findById(id)

    @PostMapping
    fun createProduct(@RequestBody product: Product): Mono<Product> =
        service.create(product)

    @PutMapping("/{id}")
    fun updateProduct(
        @PathVariable id: String,
        @RequestBody product: Product
    ): Mono<Product> =
        service.update(id, product)

    @DeleteMapping("/{id}")
    fun deleteProduct(@PathVariable id: String): Mono<Void> =
        service.delete(id)
}

Functional Routing

Separates route definitions from handler logic. More composable and testable.

kotlin

import org.springframework.context.annotation.Bean
import org.springframework.context.annotation.Configuration
import org.springframework.web.reactive.function.server.*

// Functional Routing — alternative to @RestController

@Configuration
class ProductRouter {
    @Bean
    fun routes(handler: ProductHandler): RouterFunction<ServerResponse> =
        router {
            "/api/products".nest {
                GET("", handler::findAll)
                GET("/{id}", handler::findById)
                POST("", handler::create)
                PUT("/{id}", handler::update)
                DELETE("/{id}", handler::delete)
            }
        }
}

@Component
class ProductHandler(private val service: ProductService) {

    fun findAll(request: ServerRequest): Mono<ServerResponse> =
        ServerResponse.ok()
            .body(service.findAll(), Product::class.java)

    fun findById(request: ServerRequest): Mono<ServerResponse> {
        val id = request.pathVariable("id")
        return service.findById(id)
            .flatMap { ServerResponse.ok().bodyValue(it) }
            .switchIfEmpty(ServerResponse.notFound().build())
    }

    fun create(request: ServerRequest): Mono<ServerResponse> =
        request.bodyToMono(Product::class.java)
            .flatMap { service.create(it) }
            .flatMap { ServerResponse.created(URI("/api/products/${it.id}")).bodyValue(it) }
}

WebClient

The non-blocking replacement for RestTemplate — streaming, timeouts, retries built-in.

kotlin

import org.springframework.web.reactive.function.client.WebClient
import reactor.core.publisher.Mono

// WebClient: non-blocking HTTP client (replaces RestTemplate)

@Service
class ExternalApiService(private val webClient: WebClient) {

    fun fetchUser(userId: String): Mono<UserDto> =
        webClient.get()
            .uri("/users/{id}", userId)
            .retrieve()
            .onStatus(HttpStatusCode::is4xxClientError) { response ->
                Mono.error(UserNotFoundException(userId))
            }
            .bodyToMono(UserDto::class.java)
            .timeout(Duration.ofSeconds(5))
            .retryWhen(Retry.backoff(3, Duration.ofSeconds(1)))

    fun fetchAllOrders(): Flux<OrderDto> =
        webClient.get()
            .uri("/orders")
            .retrieve()
            .bodyToFlux(OrderDto::class.java)
}

// WebClient Bean configuration
@Configuration
class WebClientConfig {
    @Bean
    fun webClient(): WebClient =
        WebClient.builder()
            .baseUrl("https://api.example.com")
            .defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE)
            .build()
}

WebClient vs RestTemplate

What to notice

RestTemplate blocks the thread for the entire HTTP roundtrip
One thread per request: 200 concurrent users = 200 blocked threads
RestTemplate is in maintenance mode since Spring 5 (deprecated)

kotlin

// RestTemplate (blocking, DEPRECATED)
val restTemplate = RestTemplate()

// Thread is BLOCKED during the entire HTTP call
val user: User = restTemplate.getForObject(
    "/users/1", User::class.java
)!!
// Thread waits here... doing nothing...

val orders: List<Order> = restTemplate.getForObject(
    "/orders?userId=1", typeRef<List<Order>>()
)!!
// Blocked again... wasting resources

// One thread per request model
// 200 concurrent users = 200 threads blocked

What to notice

WebClient returns Mono/Flux immediately — thread goes back to the pool
Small thread pool handles thousands of concurrent connections
Built-in support for streaming (Flux), timeouts, retries, and backpressure

kotlin

// WebClient (non-blocking, RECOMMENDED)
val webClient = WebClient.create("http://api.example.com")

// Thread is FREE during the HTTP call
val user: Mono<User> = webClient.get()
    .uri("/users/1")
    .retrieve()
    .bodyToMono(User::class.java)

val orders: Flux<Order> = webClient.get()
    .uri("/orders?userId=1")
    .retrieve()
    .bodyToFlux(Order::class.java)

// Shared thread pool handles thousands of requests
// 200 concurrent users = same small thread pool

Sequential vs Parallel Calls

What to notice

flatMap chains create sequential dependency — each call waits
Total time = sum of ALL call latencies

kotlin

// Sequential: each call waits for the previous one
fun sequential(): Mono<String> {
    return webClient.get().uri("/user/1").retrieve()
        .bodyToMono(User::class.java)
        .flatMap { user ->
            webClient.get().uri("/orders/${user.id}").retrieve()
                .bodyToMono(OrderList::class.java)
                .map { orders ->
                    "${user.name}: ${orders.size} orders"
                }
        }
}
// /user=200ms + /orders=300ms => total ~500ms

What to notice

Mono.zip() fires all calls simultaneously and combines results
Total time = slowest single call (massive speedup)

kotlin

// Parallel: all calls fire simultaneously
fun parallel(): Mono<Dashboard> {
    val user = webClient.get().uri("/user/1")
        .retrieve().bodyToMono(User::class.java)
    val orders = webClient.get().uri("/orders")
        .retrieve().bodyToFlux(Order::class.java).collectList()
    val notifications = webClient.get().uri("/notifications")
        .retrieve().bodyToFlux(Notification::class.java).collectList()

    return Mono.zip(user, orders, notifications)
        .map { (u, o, n) -> Dashboard(u, o, n) }
}
// 200ms, 300ms, 150ms => total ~300ms (parallel!)

Latency Optimization

kotlin

import io.netty.resolver.DefaultAddressResolverGroup
import reactor.netty.http.client.HttpClient
import java.time.Duration

// ─── Connection Pooling (reuse connections) ───
val httpClient = HttpClient.create()
    .resolver(DefaultAddressResolverGroup.INSTANCE)  // DNS caching

val webClient = WebClient.builder()
    .clientConnector(ReactorClientHttpConnector(httpClient))
    .baseUrl("https://api.example.com")
    .build()

// ─── Timeout + Retry + Fallback ───
webClient.get().uri("/data")
    .retrieve()
    .bodyToMono(Data::class.java)
    .timeout(Duration.ofSeconds(3))             // fail after 3s
    .retryWhen(Retry.backoff(3, Duration.ofSeconds(1)))  // retry 3x
    .onErrorReturn(Data.default())              // fallback value

// ─── Response Caching (Caffeine) ───
val cache = Caffeine.newBuilder()
    .maximumSize(1000)
    .expireAfterWrite(Duration.ofMinutes(5))
    .build<String, Data>()

fun getData(key: String): Mono<Data> {
    val cached = cache.getIfPresent(key)
    if (cached != null) return Mono.just(cached)
    return webClient.get().uri("/data/$key")
        .retrieve().bodyToMono(Data::class.java)
        .doOnNext { cache.put(key, it) }
}

Server-Sent Events (SSE)

Server pushes data to clients over a long-lived connection. A Flux naturally maps to an SSE stream.

kotlin

import org.springframework.http.MediaType
import org.springframework.web.bind.annotation.*
import reactor.core.publisher.Flux
import java.time.Duration

// Server-Sent Events (SSE) — real-time data streaming

@RestController
class EventController(private val eventService: EventService) {

    @GetMapping(
        path = ["/events/stream"],
        produces = [MediaType.TEXT_EVENT_STREAM_VALUE]
    )
    fun streamEvents(): Flux<ServerSentEvent<Event>> =
        eventService.getEventStream()
            .map { event ->
                ServerSentEvent.builder(event)
                    .id(event.id)
                    .event(event.type)
                    .build()
            }

    // Heartbeat to keep the connection alive
    @GetMapping(
        path = ["/events/heartbeat"],
        produces = [MediaType.TEXT_EVENT_STREAM_VALUE]
    )
    fun heartbeat(): Flux<String> =
        Flux.interval(Duration.ofSeconds(2))
            .map { "ping" }
}

USE CASES

Real-time dashboards, live notifications, stock price tickers, chat applications, log streaming, CI/CD build status updates — anywhere you need the server to push updates without the client polling.

Testing Reactive Code

StepVerifier from reactor-test — assert elements, verify completion, test errors without blocking.

kotlin

import reactor.test.StepVerifier
import reactor.core.publisher.Flux
import reactor.core.publisher.Mono

// StepVerifier: the standard tool for testing reactive streams

// Test a Mono
@Test
fun `should find product by id`() {
    val product = Product(id = "1", name = "Laptop", price = 999.99)
    `when`(repository.findById("1")).thenReturn(Mono.just(product))

    StepVerifier.create(service.findById("1"))
        .expectNext(product)
        .verifyComplete()
}

// Test a Flux
@Test
fun `should return all products`() {
    val products = listOf(
        Product("1", "Laptop", 999.99),
        Product("2", "Phone", 699.99)
    )
    `when`(repository.findAll()).thenReturn(Flux.fromIterable(products))

    StepVerifier.create(service.findAll())
        .expectNextCount(2)
        .verifyComplete()
}

// Test error handling
@Test
fun `should handle not found`() {
    `when`(repository.findById("999")).thenReturn(Mono.empty())

    StepVerifier.create(service.findById("999"))
        .expectError(ProductNotFoundException::class.java)
        .verify()
}

Reactive Repositories

Non-blocking data access with R2DBC, MongoDB, and Couchbase — returning Mono and Flux.

kotlin

// ─── R2DBC (PostgreSQL / MySQL) ───
// Non-blocking alternative to JPA/JDBC

@Table("users")
data class User(
    @Id val id: Long? = null,
    val name: String,
    val email: String,
    val role: String
)

@Repository
interface UserRepository : ReactiveCrudRepository<User, Long> {
    fun findByEmail(email: String): Mono<User>
    fun findByRole(role: String): Flux<User>
}

// ─── Reactive MongoDB ───
@Document(collection = "products")
data class Product(
    @Id val id: String? = null,
    val name: String,
    val price: Double,
    val category: String
)

@Repository
interface ProductRepository : ReactiveMongoRepository<Product, String> {
    fun findByCategory(category: String): Flux<Product>
    fun findByPriceLessThan(maxPrice: Double): Flux<Product>
}

// ─── Reactive Couchbase ───
@Document
data class Session(
    @Id val id: String,
    val userId: String,
    @Expiry(expiry = 3600) val expiresIn: Int = 3600
)

@Repository
interface SessionRepository : ReactiveCouchbaseRepository<Session, String> {
    fun findByUserId(userId: String): Flux<Session>
}

Concurrency Control

Optimistic locking with @Version — no locks held across async boundaries.

kotlin

// ─── Optimistic Locking (version-based) ───
// Multiple transactions proceed; check version before commit
// If version mismatch → retry (no locks held)

@Document(collection = "inventory")
data class Inventory(
    @Id val id: String? = null,
    val productId: String,
    val quantity: Int,
    @Version val version: Long = 0  // Optimistic lock field
)

@Service
class InventoryService(private val repo: InventoryRepository) {
    fun decrementStock(productId: String, amount: Int): Mono<Inventory> {
        return repo.findByProductId(productId)
            .flatMap { inv ->
                if (inv.quantity < amount) {
                    Mono.error(InsufficientStockException())
                } else {
                    repo.save(inv.copy(quantity = inv.quantity - amount))
                    // If another transaction modified this document,
                    // @Version mismatch throws OptimisticLockingFailureException
                }
            }
            .retryWhen(Retry.backoff(3, Duration.ofMillis(100))
                .filter { it is OptimisticLockingFailureException })
    }
}

CAP Theorem

Distributed stores guarantee at most two of: Consistency, Availability, Partition Tolerance. Reactive microservices typically choose AP with eventual consistency.

kotlin

// ─── CAP Theorem: choose 2 of 3 ───
// Every distributed data store can guarantee at most TWO of:
//
//   ┌─────────────────────────────┐
//   │       Consistency (C)       │
//   │  All nodes see same data    │
//   │  at the same time           │
//   └──────────┬──────────────────┘
//              │
//   ┌──────────┴──────────────────┐
//   │    Availability (A)         │     Partition
//   │  Every request gets a       │   Tolerance (P)
//   │  response (success/fail)    │   System works despite
//   └─────────────────────────────┘   network partitions
//
// CP: MongoDB, HBase, Redis Cluster — consistent reads, may reject writes
// AP: Cassandra, CouchDB, DynamoDB — always available, eventually consistent
// CA: Traditional RDBMS (single node) — not partition tolerant

// In reactive microservices, we usually choose AP (eventual consistency)
// and use the Saga pattern for distributed transactions

// Example: eventually consistent order status
@Service
class OrderQueryService(private val repo: OrderRepository) {
    fun getStatus(orderId: String): Mono<OrderStatus> =
        repo.findById(orderId)
            .map { it.status }
            .defaultIfEmpty(OrderStatus.UNKNOWN)  // AP: always respond
}

Messaging with Kafka

Kafka + Reactor for fully non-blocking event-driven pipelines. Messages consumed as Flux streams.

Kafka Pub-Sub architecture — Producers → Topics → Kafka Broker → Consumer Groups

kotlin

// ─── Reactive Kafka Consumer ───
// Kafka messages consumed and exposed as a Flux stream

@Service
class KafkaConsumerService {
    private val sink = Sinks.many().multicast().onBackpressureBuffer<String>()

    @KafkaListener(topics = ["orders-topic"], groupId = "webflux-group")
    fun consume(message: String) {
        sink.tryEmitNext(message)
    }

    fun getStream(): Flux<String> = sink.asFlux()
}

// ─── SSE Controller streaming Kafka messages ───
@RestController
class StreamController(private val kafka: KafkaConsumerService) {

    @GetMapping("/stream/orders", produces = [MediaType.TEXT_EVENT_STREAM_VALUE])
    fun streamOrders(): Flux<String> =
        kafka.getStream()
            .map { message -> "Order received: $message" }
}

// ─── Kafka Producer (reactive) ───
@Service
class KafkaProducerService(private val template: KafkaTemplate<String, String>) {
    fun publish(topic: String, message: String): Mono<Void> =
        Mono.fromFuture(template.send(topic, message).toCompletableFuture())
            .then()
}

PUB-SUB

Publisher → Broker (Kafka) → Subscriber. Topic-based or content-based routing.

Saga Pattern

A sequence of local transactions with compensating actions — the reactive alternative to 2PC for distributed transactions.

kotlin

// ─── Saga Pattern: distributed transactions via compensating actions ───
// Instead of one big transaction, each service has a local transaction
// + a compensating action if a downstream step fails

@Service
class OrderSagaOrchestrator(
    private val orderService: OrderService,
    private val paymentService: PaymentService,
    private val inventoryService: InventoryService
) {
    fun placeOrder(request: OrderRequest): Mono<OrderResult> {
        return orderService.create(request)                    // Step 1
            .flatMap { order ->
                paymentService.charge(order)                   // Step 2
                    .flatMap { payment ->
                        inventoryService.reserve(order)        // Step 3
                            .map { OrderResult.success(order, payment) }
                            .onErrorResume { e ->
                                // Step 3 failed → compensate Step 2
                                paymentService.refund(payment)
                                    .then(orderService.cancel(order))
                                    .then(Mono.error(e))
                            }
                    }
                    .onErrorResume { e ->
                        // Step 2 failed → compensate Step 1
                        orderService.cancel(order)
                            .then(Mono.error(e))
                    }
            }
    }
}

ORCHESTRATION

Create Order → Charge Payment → Reserve Inventory → Confirm. If Step 3 fails, compensations run in reverse. Services must be idempotent.

Resilience Patterns

Resilience4j Circuit Breaker, Bulkhead, and Retry — preventing cascading failures in reactive systems.

kotlin

// ─── Circuit Breaker (Resilience4j) ───
// Prevents cascading failures by "tripping" after too many errors

val circuitBreaker = CircuitBreaker.of("paymentService",
    CircuitBreakerConfig.custom()
        .failureRateThreshold(50f)          // trip at 50% failure rate
        .waitDurationInOpenState(Duration.ofSeconds(10)) // stay open 10s
        .slidingWindowSize(10)               // evaluate last 10 calls
        .build()
)

fun chargePayment(order: Order): Mono<Payment> {
    return circuitBreaker.run(
        paymentClient.charge(order),         // primary call
        { fallback -> Mono.just(Payment.pending()) }  // fallback
    )
}

// ─── Bulkhead (limit concurrent calls) ───
val bulkhead = Bulkhead.of("externalApi",
    BulkheadConfig.custom()
        .maxConcurrentCalls(5)               // max 5 simultaneous calls
        .maxWaitDuration(Duration.ofMillis(500)) // wait max 500ms for slot
        .build()
)

// ─── Retry with jitter ───
val retry = Retry.of("dbRetry",
    RetryConfig.custom<Any>()
        .maxAttempts(3)
        .waitDuration(Duration.ofMillis(500))
        .retryExceptions(TransientDataAccessException::class.java)
        .build()
)

CIRCUIT BREAKER

CLOSED (normal) → OPEN (failures exceed threshold) → HALF-OPEN (test recovery) → CLOSED or back to OPEN.

Spring Cloud Gateway

Reactive API gateway built on WebFlux — routing, rate limiting, circuit breaking, all non-blocking.

kotlin

// ─── Spring Cloud Gateway: reactive API gateway ───
// Built on WebFlux — fully non-blocking

// application.yml configuration
// spring:
//   cloud:
//     gateway:
//       routes:
//         - id: user-service
//           uri: lb://USER-SERVICE
//           predicates:
//             - Path=/users/**
//           filters:
//             - StripPrefix=1

// Programmatic route definition (Kotlin DSL)
@Configuration
class GatewayConfig {
    @Bean
    fun routes(builder: RouteLocatorBuilder): RouteLocator =
        builder.routes()
            .route("user-service") { r ->
                r.path("/api/users/**")
                    .filters { f ->
                        f.stripPrefix(1)
                            .addResponseHeader("X-Gateway", "Spring Cloud")
                    }
                    .uri("lb://USER-SERVICE")
            }
            .route("order-service") { r ->
                r.path("/api/orders/**")
                    .filters { f -> f.stripPrefix(1) }
                    .uri("lb://ORDER-SERVICE")
            }
            .build()
}

// Custom Global Filter (logging, auth, metrics)
@Component
class AuthFilter : GlobalFilter, Ordered {
    override fun filter(exchange: ServerWebExchange, chain: GatewayFilterChain): Mono<Void> {
        val token = exchange.request.headers.getFirst("Authorization")
        if (token == null || !token.startsWith("Bearer ")) {
            exchange.response.statusCode = HttpStatus.UNAUTHORIZED
            return exchange.response.setComplete()
        }
        return chain.filter(exchange)
    }
    override fun getOrder(): Int = -1  // run first
}

Gradle Dependencies

Here are the essential dependencies to get started with Spring Reactive in a Kotlin project:

kotlin

// build.gradle.kts — Spring Reactive dependencies
dependencies {
    implementation("org.springframework.boot:spring-boot-starter-webflux")
    implementation("io.projectreactor.kotlin:reactor-kotlin-extensions")
    implementation("org.jetbrains.kotlinx:kotlinx-coroutines-reactor")

    // Reactive data access (choose one or both)
    implementation("org.springframework.boot:spring-boot-starter-data-mongodb-reactive")
    implementation("org.springframework.boot:spring-boot-starter-data-r2dbc")
    runtimeOnly("io.r2dbc:r2dbc-postgresql")

    // Testing
    testImplementation("io.projectreactor:reactor-test")
}

Key Takeaways

Mono (0..1) and Flux (0..N) are the reactive building blocks
Backpressure via request(n) prevents producers from overwhelming consumers
WebFlux runs on Netty event loop — never .block() on it
WebClient replaces RestTemplate — use Mono.zip() for parallel calls
Saga Pattern for distributed transactions, Resilience4j for fault tolerance
Spring Cloud Gateway ties it all together as the reactive API entry point
